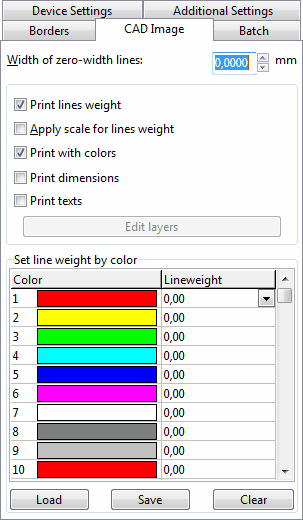

Specifies options for CAD format file printing
Width of zero-width lines
Specifies width in printing unit values (inches or millimeters) of the lines which has a width equal zero. All primitives with null-width will be printed with width equal entered value.
Print lines weight
If it is checked all primitives with null (zero) width will be printed with width equal entered to the edit box Width of null-width lines, else all primitives with zero-width will be printed with width equal 1 pixel.
Apply scale for lines weight
Use this property to scale lines weight according to the drawing (image) scaling.
Print with colors
Displays the drawing (image) in the colors or black-white mode.
Note: use black-white mode for printing if you use black-white printer and want to have all the lines with the same weight and intensity.
Print dimensions
Print dimension entities if exist.
Print texts
Print text entities if exist.
Edit layers - calls Layers dialog.
In CAD color system each color is identified by an AutoCAD Color Index (ACI) number, an integer from 1 to 255. Standard color names are available only for colors 1 to 7. These colors are assigned as the following: 1 Red, 2 Yellow, 3 Green, 4 Cyan, 5 Blue, 6 Magenta, 7 White/Black.
This option allows manual defining the line weight accordingly to its color.
Press Save... button to save already made settings.
Press Load... button to load previously saved settings (file with CWS extension).
