Multipage Printing

  Conversion and Print >

Multipage Printing

Previous pageReturn to chapter overviewNext page

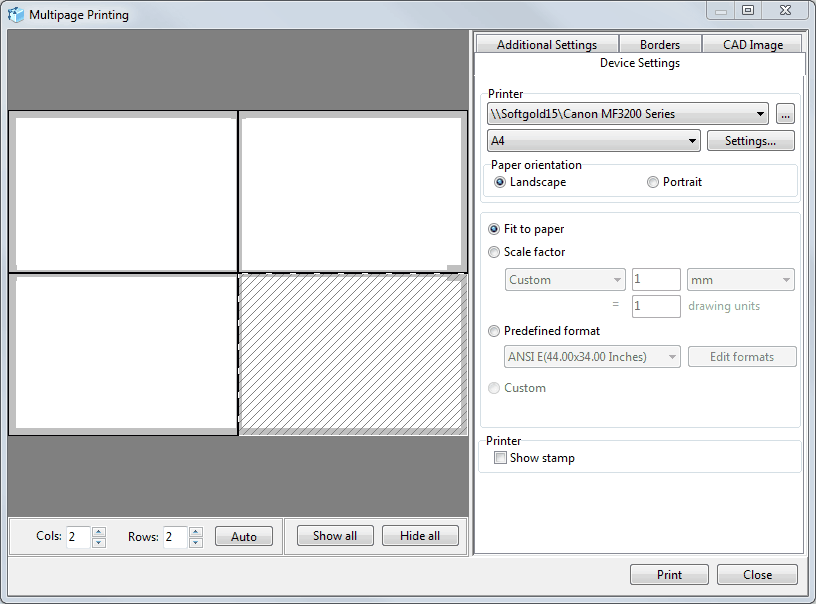

The command Multipage printing allows printing a drawing on several sheets. For example, a large format file can be printed on several smaller sheets. When using the dialog box Multipage printing you’ll be able to manage a great number of parameters. The Multipage Printing dialog includes the following tabs:

Device settings

Borders

CAD Image

Additional settings

Note: Tab "CAD Image" available when CAD format file is loaded.

Cols and Rows

Displays number of papers of the horizontal and vertical placement. The amount of pages is automatically calculated using the image size and the printer's printable area size.  Also the amount of pages can be changed manually.

Auto - recalculate an optimal sheets' number of columns and rows accordingly to the current Scale factor.

Press Print button to print the image.

Press Close button to hide the Print preview.
