Quick Select

  Editor > Element Selection >

Quick Select

Previous pageReturn to chapter overviewNext page

Show / hide the hidden text

The Quick Select button allows to select several entities according to the chosen filter conditions.

Quick Access Panel:

Ribbon: Editor -> Selection -> Quick Select

Menu: Draw -> Quick Select

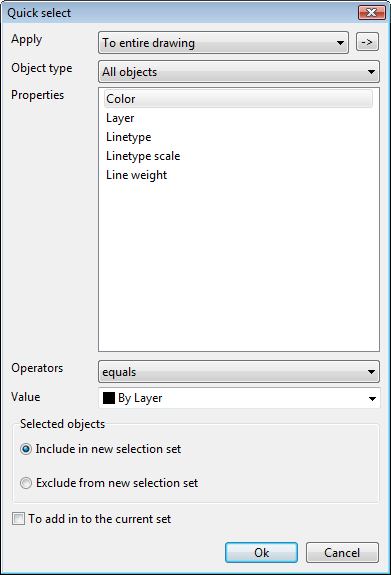

The Quick Select button activates a dialog box which allows defining filtering criteria for selection. The objects meeting the filter criteria are included to the selection after the window is closed. Or on the contrary all the element besides the ones meeting the filter criteria are selected. It is also possible to create a complex selection by adding to the currently selected elements those received while using the Quick select command.

Apply

Defines whether the selection conditions should be applied to the whole drawing or to the current suite (if exists).

oTo entire drawing  - selection conditions are applied to the whole drawing. Is set by default when no entities are selected.

oTo current selection Is a default option when some entities are selected.

Select entities

Serves to specify a group of objects for the filter. When the button is pressed, the dialog box closes to show the drawing where you can select entities.  Select the necessary elements of the drawing and press the Enter key to return to the dialog box. After that select To current selection in the Apply section.

Filter conditions are applied to the whole drawing if To add in to the current set is on. In this case the value To current selection is unavailable for the Apply parameter. Select entities is unavailable too.



Object type

Defining the object types included into the selection. If filter conditions are  applied to the whole drawing the Object type list will contain all the available objects (including those that do not belong to Autodesk). Otherwise this list is filled by the selected object types only.



       Example of the available object types list:



Properties

Defining objects' properties for a filter. It contains a list of all the properties for the currently chosen objects. These properties are to be used as another criterion of the selection you wish to do. Subject to the property you select here the fields Operators and Values get different values.

       Common list of properties

       Example: properties for the Circle object



Operators

Defining a range of the filter. According to the type of the selected property this parameter may offer some or all of the following values:

=   equals the chosen property of the selection objects must be equal to the value in the field Value of the dialog box Quick Select.

<> not equal to all the object the properties of which aren't equal to the value in the field Value of the dialog box Quick Select will be selected.

>   greater than all the objects the value of the chosen property of which exceed the value in the field Value of the dialog box Quick Select will be selected.

<   less than all the objects the value of the chosen property of which is less than the one in the field Value of the dialog box Quick Select will be selected

select all ignores all the filtering properties

Operators greater than and less than are unavailable for some properties. A search using template symbols is available for editable text fields only.

       Example



Value

Defining a property's value for the filter. Field Value turns to a list of values if the application contains some known values for the selected property. Otherwise it is necessary to use the keyboard for entering a new value for the property.

       Example



Selected objects

Defines an action to be performed to the objects which meet the filter conditions:

oInclude in new selection set - to create a new set which will contain only those objects which will fit the filter conditions

oExclude from new selection set  - create a new set which will contain only those objects which will not fit into filter restrictions



To add into the current set

Selecting a way of adding new set to the current one: adding new objects to the current set or replacing the current set by a new one.
